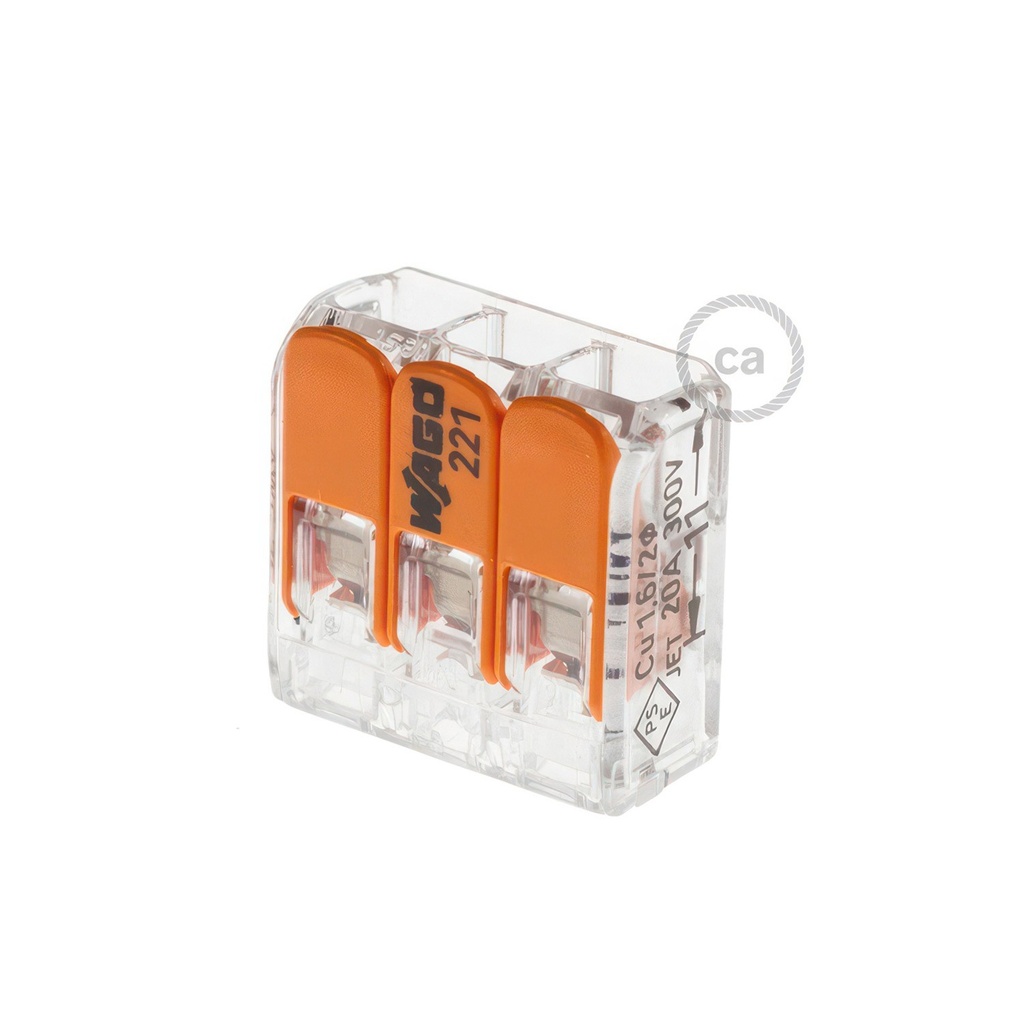

Transparent universal splicing connector with 3 inputs
This transparent universal splicing connector with 3 inputs joins electrical conductors without screws: the stripped wire is pushed into the input and stays clamped. It is tested to EN 60998 and takes flexible, semi-rigid or rigid conductors with a rated cross-section from 0.2 to 2.5 mm². The rated voltage is 450 V and the rated current 24 A. The stated stripping length is 9 mm (+1 mm), and the maximum permitted ambient temperature according to EN 60998 is 85 °C. The transparent body lets you see the inserted wires, so a quick look is enough to check the connection.
Product details
| Standard | tested to EN 60998 |
|---|---|
| Connection | screwless |
| Conductor | flexible, semi-rigid or rigid |
| Rated cross-section | 2 x 0.2-2.5 mm², for rigid or flexible cables |
| Rated voltage | 450 V |
| Rated current | 24 A |
| Stripping length | 9 mm (+1 mm) |
| Maximum ambient temperature | 85 °C (EN 60998) |
