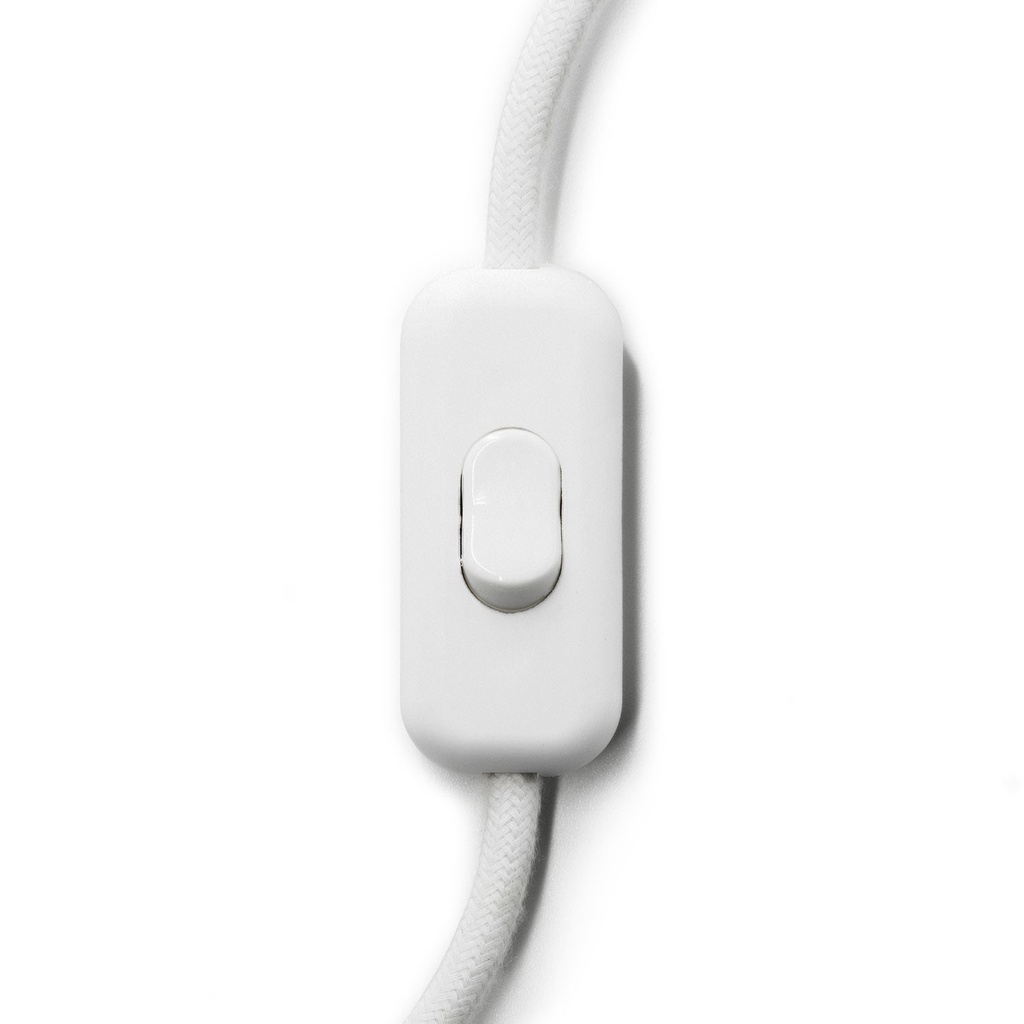

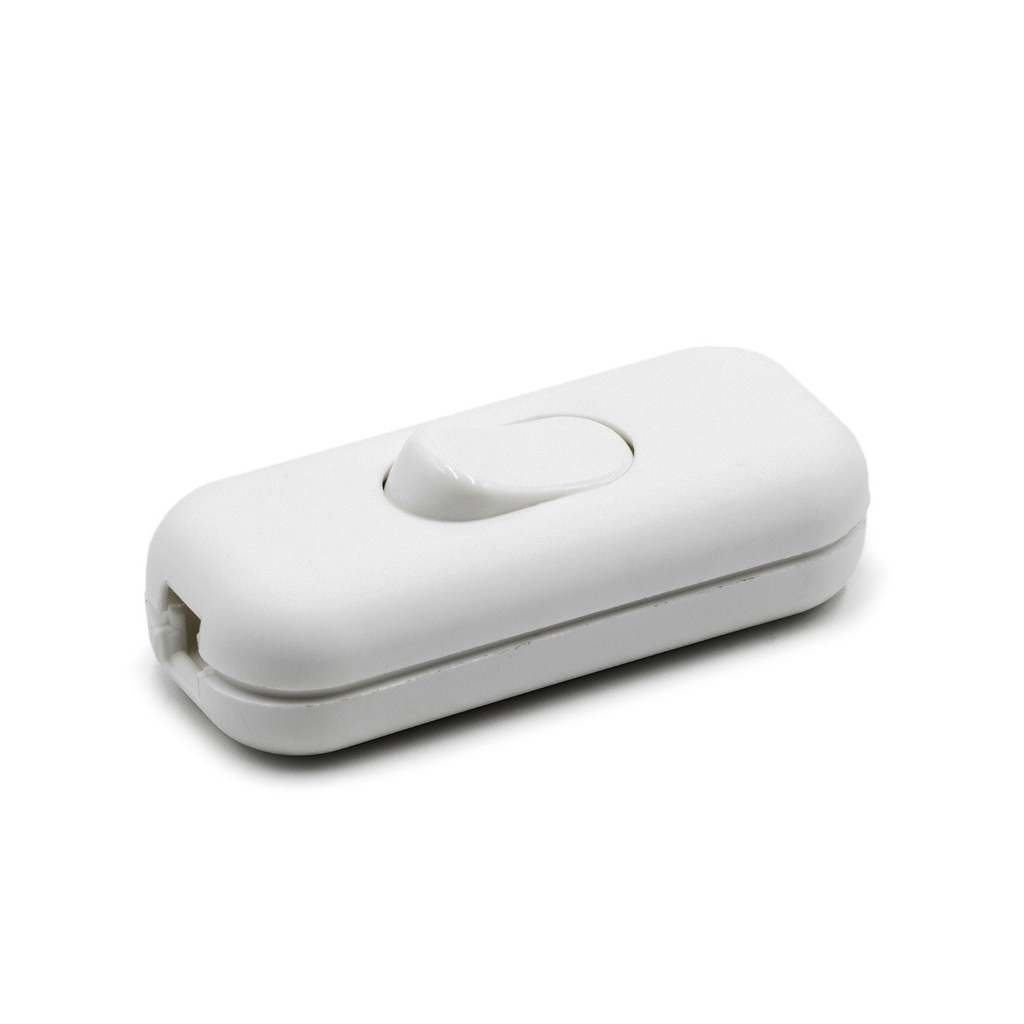

Single-pole inline switch with earth terminal
This single-pole inline switch with a protective earth terminal is ideal for discreet wiring and is used in wiring sets of class II lamps. It has screw terminals and works at 250 V, with a resistive load of 2 A, an inductive load of 1 A and a lamp load of 1 A. It is used with H03VVH2-F 2x0.75 mm² and H03VV-F 2x0.75 mm² and 3x0.75 mm² cables. It measures 60 x 25 mm, with a height of 15 mm, so it stays compact along the cable. Before working on the installation, cut the voltage at the main switch. It is a simple component, made for anyone who builds or repairs the wiring of a lamp themselves.
Product details
| Protective earth terminal | present |
|---|---|
| Rated voltage | 250V |
| Resistive load | 2A |
| Inductive load | 1A |
| Lamp load | 1A |
| Terminals | screw terminals |
| Use | for wiring sets of class II lamps with H03VVH2-F, 2x0.75mm² and H03VV-F, 2x0.75mm² and 3x0.75mm² cables |

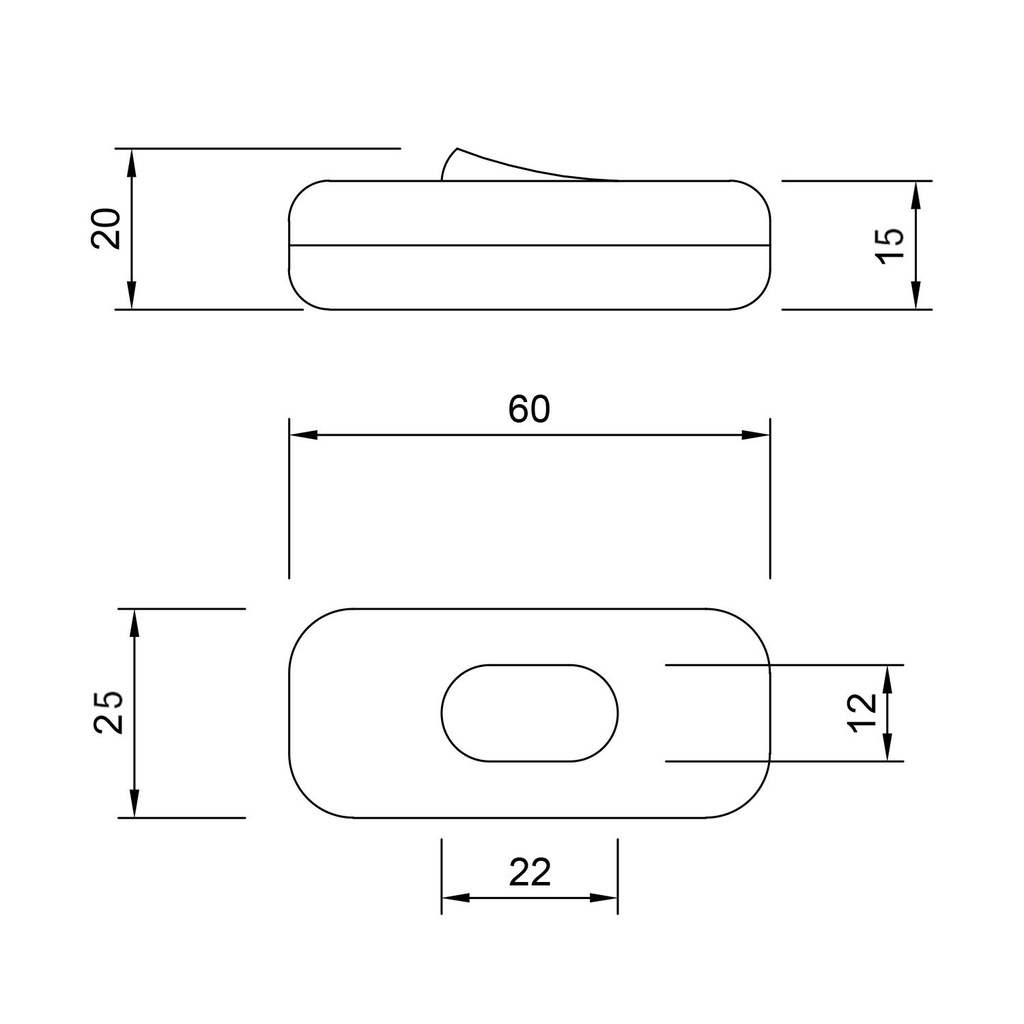

| Dimensions | 60 x 25 mm, height 15 mm |
