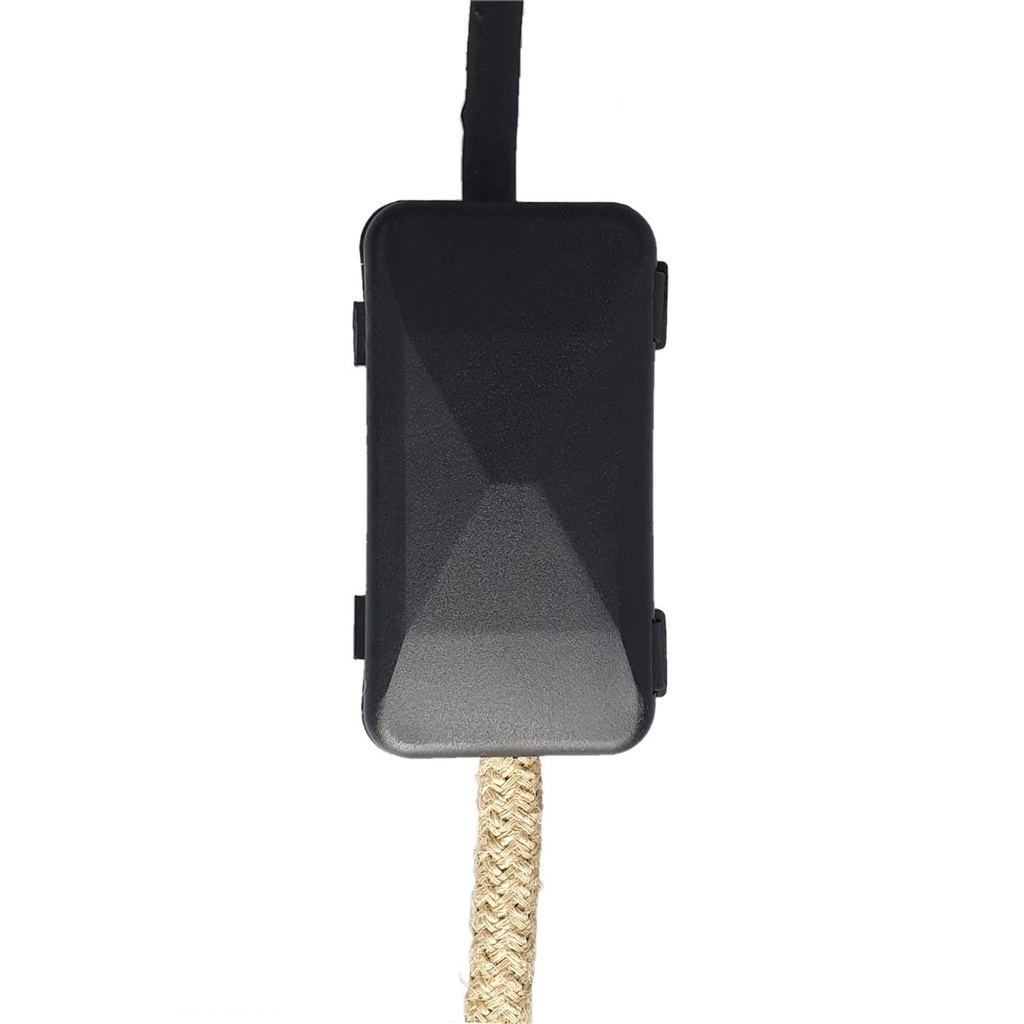

Connection kit with cable protection box and double cable clamps
The connection kit with cable protection box and double cable clamps makes ceiling wiring safe and quick. The plastic box insulates and protects the connectors inside and has two strain reliefs, one on each side, which keep the cables safe and stable under external stress. By hiding the connection in a plasterboard false ceiling, you can replace a classic ceiling rose with a flush-mounted one and get a clean, minimalist fixing. The box measures 62 x 34 x 21 mm; the connector has 2 inputs per pole, 6 per side, for cables from 0.75 to 2.5 mm². Voltage 450 V, current 24 A, 85° C maximum.
Product details
| Material | plastic box |
|---|---|
| Length | 62 mm |
| Width | 34 mm |
| Height | 21 mm |
| Connector | one connector with 2 inputs per pole |
| Inputs per side | 6 |
| Permitted cable cross-section | 0.75 mm² to 2.5 mm² |
| Rated voltage | 450 V |
| Rated current | 24 A |
| Maximum ambient temperature (EN 60998) | 85° C |
| Protection class | class 1 appliances |
